Manner   of rolling

In   feed or continuous rolling

Dies number

Two rollers/   Two axis

Material  diameter

Rods:   Ф2－Ф16mm　for bar

Range   of pitch rolling

0.4-2.0mm

Dies'   diameter

Outer   diameter: 100 mm

Inner   diameter: 50.5 mm

Key   groove: 8×4mm

Dies'   thickness

30mm

Output

20-40mm/min

Main   motor

3HP(2.2KW)

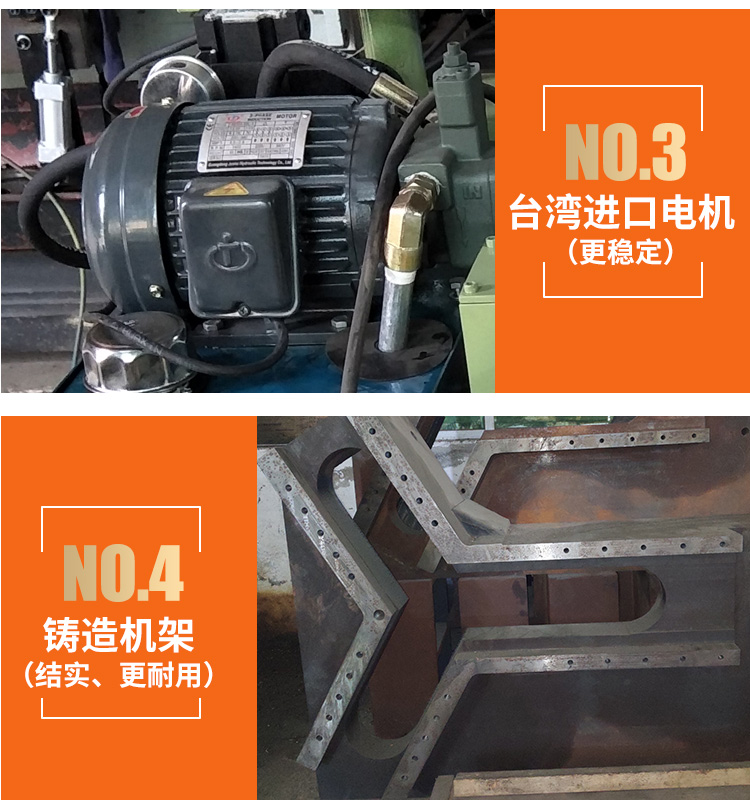

Hydraulic   motor

2ＨＰ（1.5ＫＷ6Ｎ)

Power

380Ｖ50-60Ｈz

Maximum   rolling pressure

5TONS

Dies

Not   including

Loading   station and unloading station

Not   including

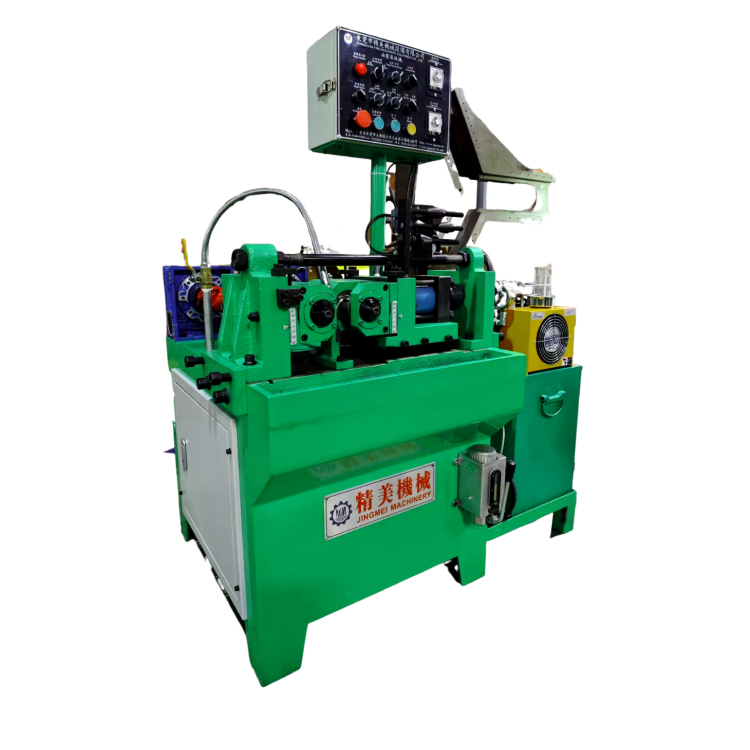

Machine   color

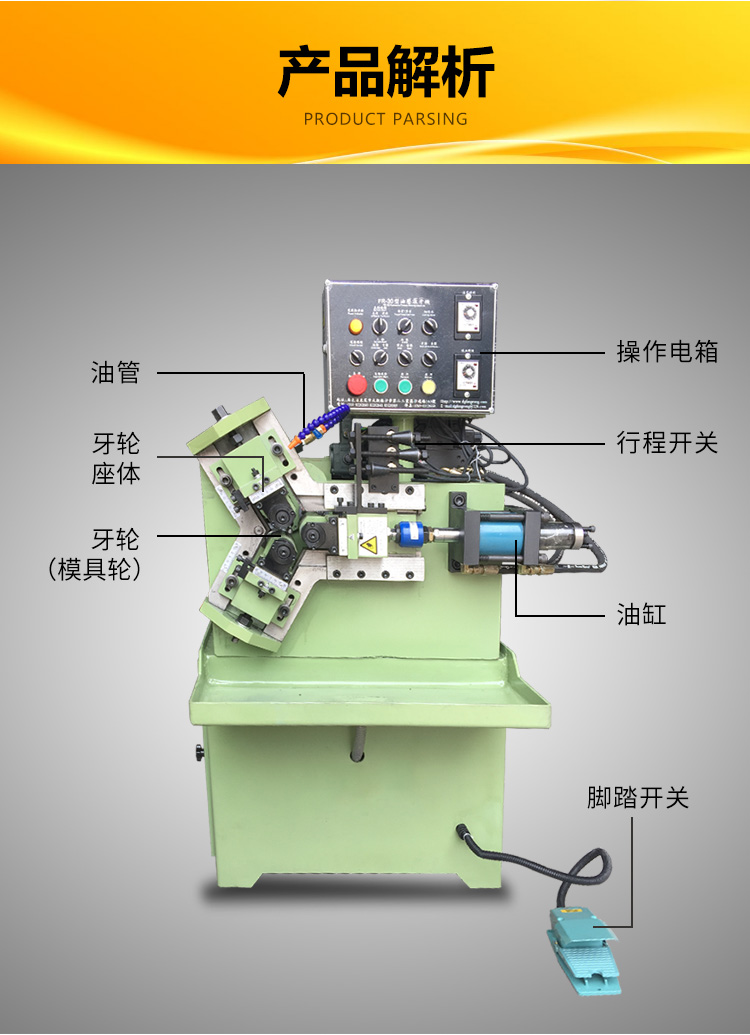

Green   (see picture below)

Dimension(reference)

930*1300*1220mm   (L*W*H)

Weight   (approx)

600KG
