Dies   number

Three   rollers/ Three axis

Material  diameter

Ф35－Ф120mm　

(material will   affect the diameter range)

Range   of pitch rolling

1.0－8.0mm

Dies'   diameter

Outer   diameter: 118 mm

Inner   diameter: 70mm

Key   groove: 20x10mm

Dies'   thickness

25mm－90mm

Center   distance of die-spindles

220－105mm

Output

4-25pcs/min

Dies   shaft inclination

±3°

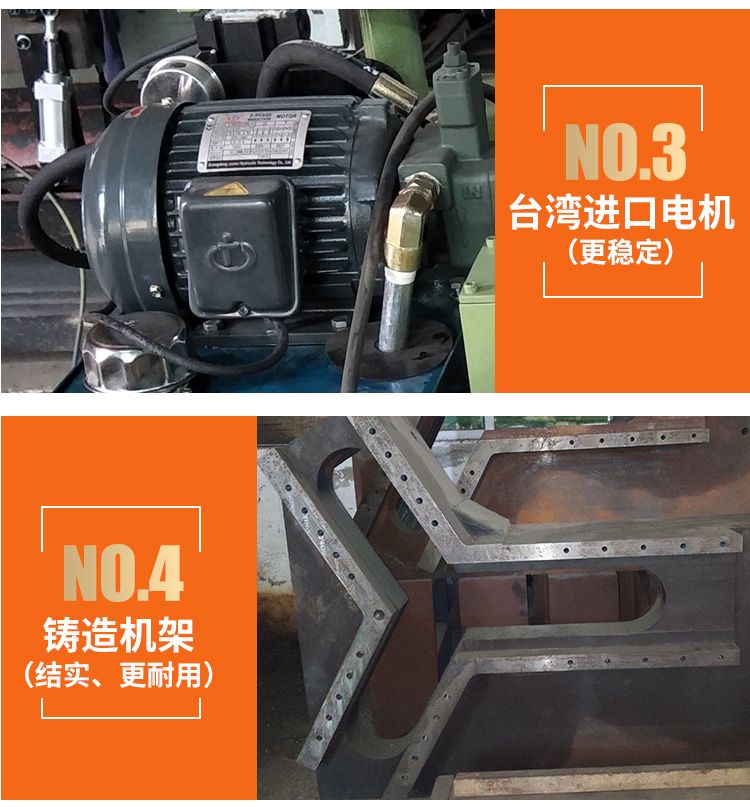

Hydraulic   motor

10HP6N(7.5KW)

Maximum   rolling pressure

27TONS

Dies

Not   including

Loading   station and unloading station

Not   including

Machine   color

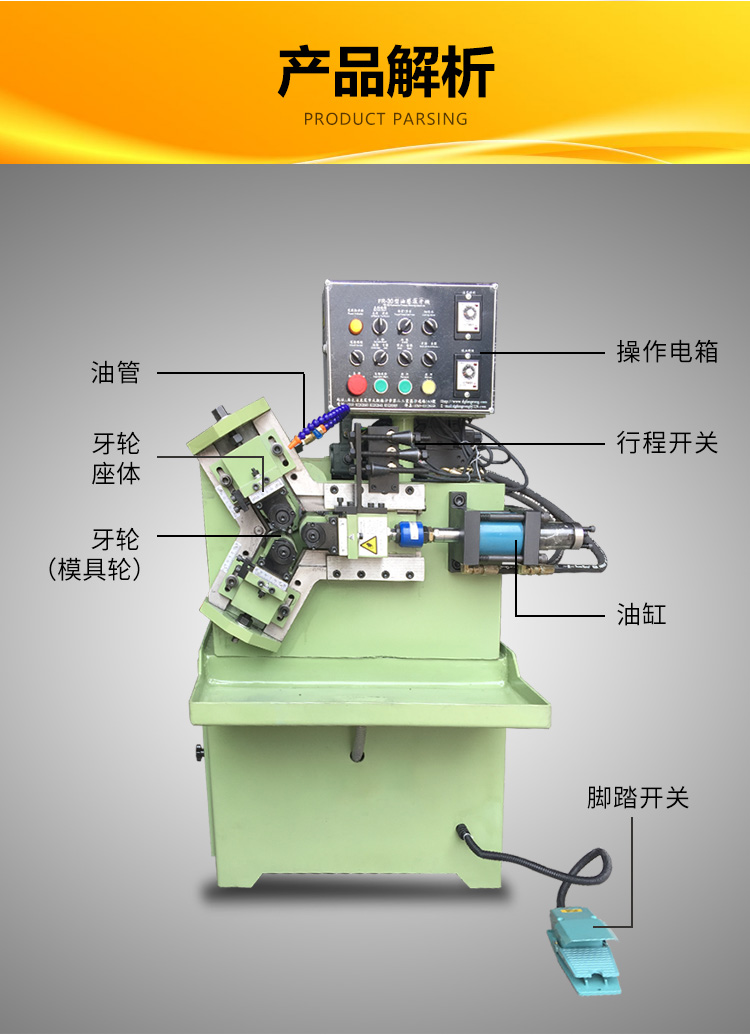

Green   (see picture below)

Weight   (approx)

3580KG
